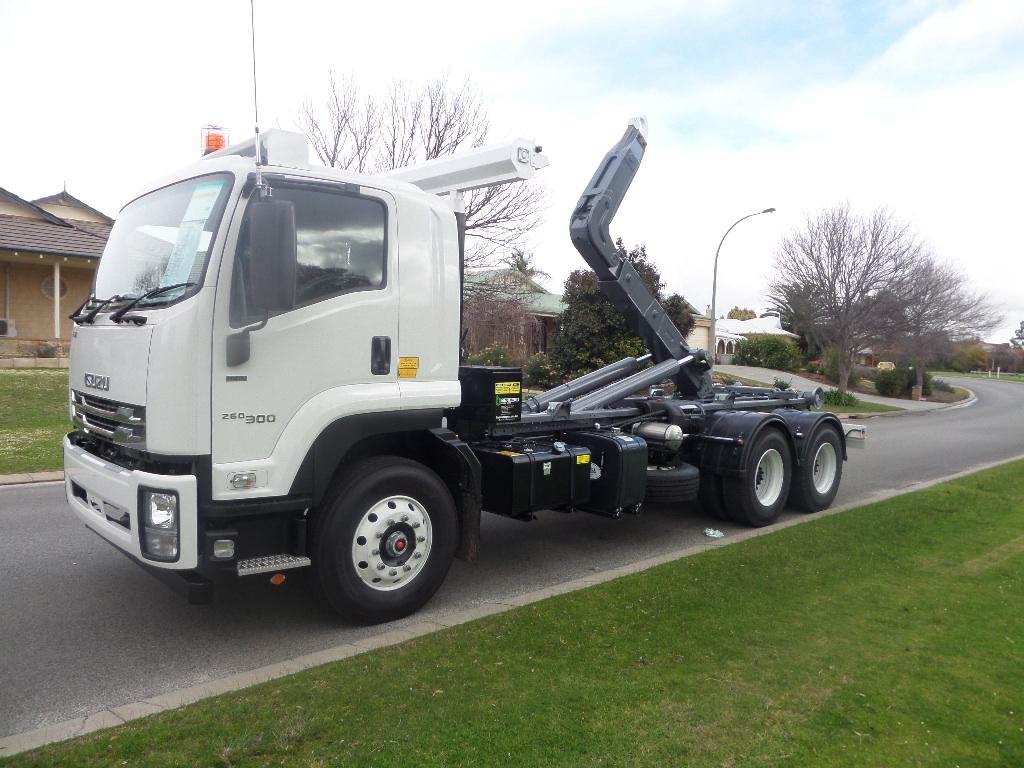

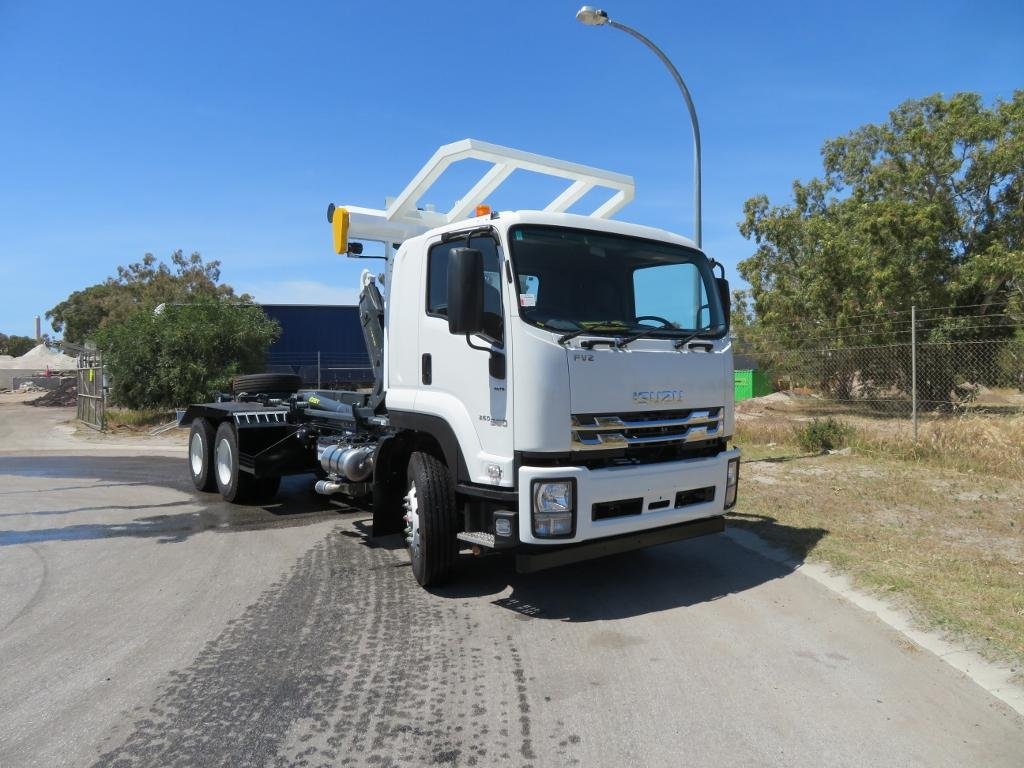

2025 Isuzu Fyh

MADE TO ORDER

Pricing based on Isuzu FYH 300-350 8X4 fitted with HYVA Titan EVO E20

Technical Specifications- HYVA TITAN EVO E20-57-S MODEL

MOUNTING
Suitable to be mounted on chassis cab 6x4, 8x4 GVM: 22.5 — 28 tons

MODEL WEIGHTS- E20-57-S 2600KG+ OPTIONS

PTO & PUMP- 70-80L/M @ 350 BAR High pressure piston pump
• PTO TO SUIT –ALLISON 3500 SERIES WITH ISO OUTPUT

BIN CAPACITY- From 10m3- 40m3 Hook lift containers

STRUCTURE
Sub-frame: self-carrying type made by 2 x longitudinal S-shaped members in high tensile steel type DOMEX 420 – thickness 10mm
Container support guides in high tensile steel type Structural Grade 510
Rear rollers in forged steel
Telescopic arm in high tensile steel type WELDOX 700
Centre body in high tensile steel type WELDOX 700
Rear frame in high tensile steel type DOMEX 420
Hydraulic circuit in steel pipe
Heavy duty bushings to tip frame
Heavy duty bushings to centre frame
Hook in high tensile steel WELDOX 700 thickness 50mm (bolted)

PINS
High tensile roller shaft
Heavy duty bearings
High tensile centre pivot
Tipping cylinders pins in high tensile steel with heavy duty bushings

CYLINDERS
Cylinders in Seamless Precision Steel Tube
Heavy duty seal sets
2 x Hoisting cylinders Ø 150mm
1 x Telescopic arm cylinder Ø 110mm
1 x Container hydraulic locking cylinder Ø 50mm


HYDRAULIC SYSTEM
Front oil tank 110L with level gauge / lateral oil tank 135L
Oil filter with interchangeable cartridge
Hydraulic distributor flow control with relief valve
Over centre valve on hoisting cylinders
Control valve on telescopic arm cylinder
Sequence and control valve on telescopic arm for automatic opening of the
container hydraulic locking on arm start operation
Control valve on container hydraulic locking cylinder

Option: control valve on stabilizing cylinders / rear stabilizing roller


SAFETY FEATURES
Interlock valve mounted on container hydraulic locking
Hydraulic over centre valve mounted on hoisting cylinders
Centre body-rear frame spring hook security during tipping phase
Rear frame locking to the container for the tipping operation
Pneumatic hook security


CAB CONTROLS
Electro-pneumatic cab controls mounted on hand board
Hand held remote pedant
Container load/unload/tipping
Telescopic arm
Container hydraulic locking
