2026 Isuzu F Series

***IN STOCK **

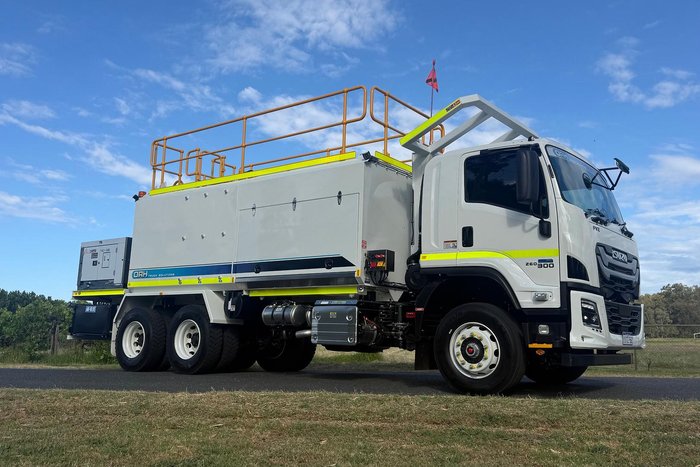

2026 ISUZU MY25 FVZ 260- 300 6X4 Mine Spec 11,600L Service Truck - In stock and ready to go

Designed to maximise efficiency and reliability in the field, the 11,600L Service Truck Module delivers a complete on-site servicing solution for demanding operations across mining, civil, construction and transport industries. Built for tough Australian conditions, this heavy-duty module is engineered to keep your fleet supported and minimise downtime on site.

The module features multiple integrated tanks for diesel, engine oil, waste oil and additional service fluids, along with a high-pressure grease system to provide versatile and efficient equipment servicing capabilities. Air-operated pumps, an NMI-approved fuel metering system and strategically positioned hose reels allow for smooth, practical and user-friendly operation in the field.

Safety and compliance are built into every Service Truck Module, with a certified ROPS system, emergency stop functionality, fire extinguishers and compliant safety signage fitted as standard. Every module can also be customised to suit your fleet requirements, operational demands and servicing applications.

TANK SPECIFICATIONS:
Tank 1 - 600L Water
Tank 2 - 600L Coolant
Tank 3 - 600L Waste Oil
Tank 4 - 600L Gear Oil
Tank 5 - 600L Hydraulic Oil
Tank 6 - 600L Engine Oil
Tank 7 - 600L Spare Oil
Tank 8 - 8000L Diesel
Grease Pod - 180kg

GENERAL SPECIFICATIONS:
Grease set up high pressure and bulk grease
All Pumps are Operated through Air Manifold
NMI Fuel Metering System
Hydrauflo Fast Filling Fuel System
Hose Reels Located on RHF corner of Module Enclosed in a Bunded Cabinet with Lockable roller door
Handrails Comply with Australian Standards AS1657-1992
Module Fitted with Lights Suitable for Night Servicing
Combination Lights (Stop/Tail & Indicator) plus Clearance Lights all LED
4 x LED work lights on Service Module Sides
2 x LED lights in the Reel Cabinet
Curtis FS FAC 28B 100CFM Rotary Screw Air Compressor
Emergency Stops 1 x Inside the Cab and 1 x Outside the Cab
Lockable Battery Isolator and Starter Isolator fitted to truck
Labels & Signage Supplied for Tank and Reel Identification
2 x 9kg Fire Extinguishers Fitted to Module
Certified ROPS (Roll Over Protection System)
Self Closing Gates with Latches
Anti Slip Treads on all Access Steps and Top of Tank
12V & 24V Jump Start Receptacles
3 x Lockable Storage Containers Located on Left Hand Side
All Safety Signage and Decals to Australian Standards
Emergency Eye Wash Station Mounted Inside Drivers Door
Fuel Reels - Fast Fill & Light Vehicle
In Line Oil and Fuel Filters
Tanks Fitted with Access Lids & Cam Lock Fittings Suitable for Top Fill with Breathers
Finished in 2 Pack White Paint
Park Brake Warning Alarm
Reverse Camera (active only whilst in reverse)
Reverse Alarm
Wheel Chocks
Wheel Nut Indicators
Window Tinting
Whip Aerial
Oil Spill Kit
Grease Lines to Front End Grease Points
First Aid Kit

CHASSIS INFORMATION
- Euro 6-compliant engine
- Advanced active & passive safety systems
- Enhanced cabin comfort & ergonomics
- Driver assistance technologies
- Durable driveline for mining & civil applications
- ISUZU 6.7l 300HP engine
- Allison 6 speed Auto
- Advance emergency Braking
- Electronic Stability Control
- Adaptive Cruise Control
- 6 years / 500,000kms Manufacturers warranty on Cab Chassis

WARRANTY & SUPPORT
- 2 Years Structural Warranty
- 12 Months Parts Warranty
- Isuzu Warranty - 6 Years / 250,000km Warranty / 24/7 Roadside Assist

PARTS & SERVICE SUPPORT THAT KEEPS YOU MOVING

At , our commitment doesn’t end when your truck leaves our yard. Our dedicated Parts & Service support is designed to keep your equipment performing reliably throughout its working life.

From genuine parts and servicing to ongoing maintenance and technical support, our experienced team provides responsive, practical solutions to minimise downtime and keep your trucks working when you need them most.

Quality builds. Genuine parts. Reliable service. Ongoing support.
